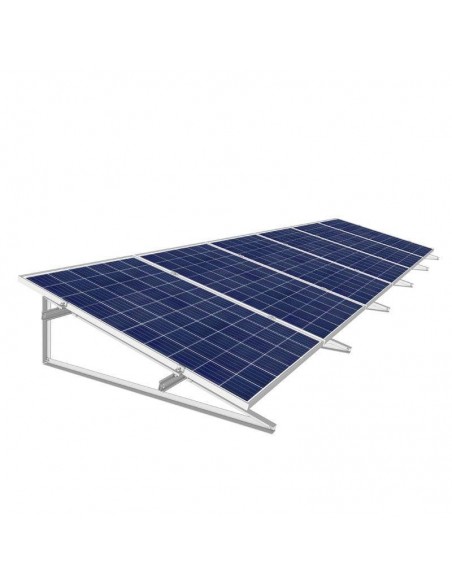

KIT STRUCTURE OF 3 PANELS IN VERTICAL 30º.
Mounting kit of 3 vertical panels with triangles at 30º for a maximum panel width of 104 cm. It consists of horizontal aluminum profiles that are fixed to triangles by means of brackets, screws, steel and aluminum staples, thus providing the module with the required inclination of about 30º.
- Providing all the necessary elements for assembly.
- Easy to assemble structure .
- Aluminum construction resistant to adverse weather conditions.
Kit for mounting 3 panels vertically with triangles at 30º for a maximum panel width of 104 cm.
The configuration has been designed to optimize transport costs to avoid extra lengths, we can rethink it using longer guides to improve assembly time by using fewer joints and reducing the cost of the material.
- 2 Guide Pro Standard 105 cm (030009) 2
- Guide Pro Standard 220 (030006) 2
- Splice Guide Pro Standard (030014) 4
- Inter Clamp 40 (030046) 4
- End Clamp 35/40 (030044) 4
- Aluminum 30º 1700x1700 with reinforcement (60/72cell) ( 030098) 8
- Pro Standard Guide Clamp (030047)
- 2 Tube 45*20 L1665 (030100)
- 4 Hex Bolt Bolt Kit double triangle (030064)
