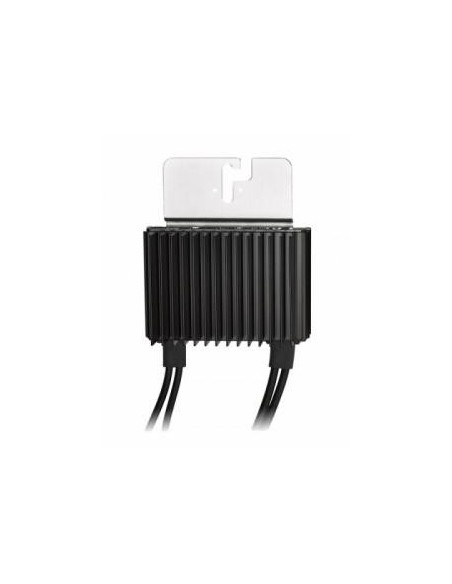

The SolarEdge P505-4R M4M RM Optimizer is a necessary element in SolarEdge inverter installations when panels of 400W or more are installed. An optimizer must be incorporated for each solar panel in the series connected to the inverter.

This model P505 is suitable for panels of 60 or 72 cells and supports a power of up to 505W. It comes with a frame ready to be easily attached to the rear profile of the solar panel. It incorporates 2 pairs of MC4 connectors, one to be connected to the solar panel and the other pair to the string going to the inverter. The SolarEdge P505 Optimizer is an indispensable component in any photovoltaic installation that incorporates a SolarEdge inverter. There are many models of optimizers, so we must take into account the electrical characteristics of each module that we are going to use to choose the appropriate optimizer for our photovoltaic panels. By optimizing at the module level, the production obtained on our solar system will be the maximum possible for each lighting situation and individual performance of each solar panel. In this way, thanks to its superior efficiency, the initial extra cost of having to include an optimizer for each solar panel installed is more than compensated over time. In classic grid-connected systems where the maximizer is located inside the inverter itself, in this type of installation we decentralize and have an optimizer for each solar panel installed.

• Specially designed to work with SolarEdge inverters
• Up to 25% more energy
• Superior efficiency (99.5%) Mitigates
• all types of output difference loss between modules, from manufacturing tolerance to partial shading.
• Flexible system design for maximum space utilization.
• Fast one-screw installation.
• State-of-the-art maintenance with module-level monitoring. SaceDC
• at module level for the safety of installers and firefighters.
