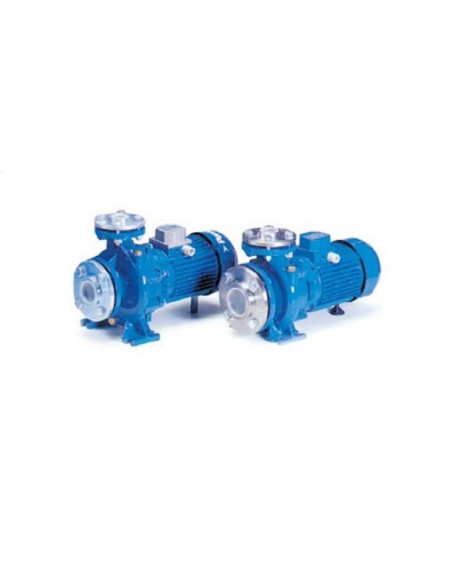

Monobloc centrifugal pump CM65-200C 20CV three-phase 400V manufactured according to EN 733 standard, used in multiple applications, refrigeration and air conditioning, pressurization and irrigation, fire-fighting, industry, water purification and treatment.
- Pump body, turbine motor coupling in cast iron, shaft in stainless steel.
- Three-phase motor 400V, IP 55, 2900 rpm.
- Liquid temperature from -10ºC to 90ºC.
Connections: DNA DNI
CM 32 50 mm 32 mm
CM 40 65 mm 40 mm
CM 50 65 mm 50 mm
CM 65 80 mm 65 mm
CM 80 100 mm 80 mm
* Supplied with threaded counterflanges and screws.
