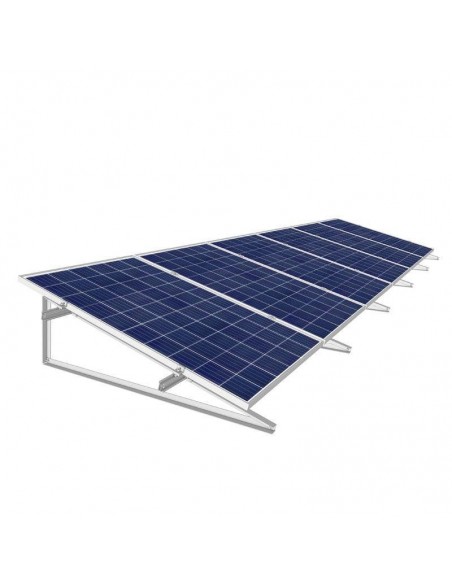

8-PANEL VERTICAL 30º STRUCTURE KIT
Assembly kit of 8 vertical panels with triangles at 30º for panels with a maximum width of 104 cm, consisting of horizontal aluminum profiles that are fixed to triangles by means of brackets, screws, steel and aluminum staples, thus providing the module with the required inclination of about 30º.
- Providing all the necessary elements for assembly.
- Easy to assemble structure .
- Aluminum construction resistant to adverse weather conditions.
Kit for mounting 8 panels vertically with triangles at 30º for a maximum panel width of 104 cm.
The configuration has been designed to optimize transport costs in order to avoid extra lengths, we can rethink it using longer guides to improve the assembly time by using fewer joints and reducing the cost of material.
- 8 units Aluminum Triangle 30º 1700mm (030098)
- 8 Pro Standar Guides 220mm (030006) 2
- Tubes 45*20 L1600 (030100) 6
- units Splices (030014) 4
- units End Clamps (030044)
- 14 Inter Clamp 40 (030046)
- 16 Pro Standard Guide Clamp (030047) 4
- Hexagonal Bolt Double Triangle Kit (030064)
