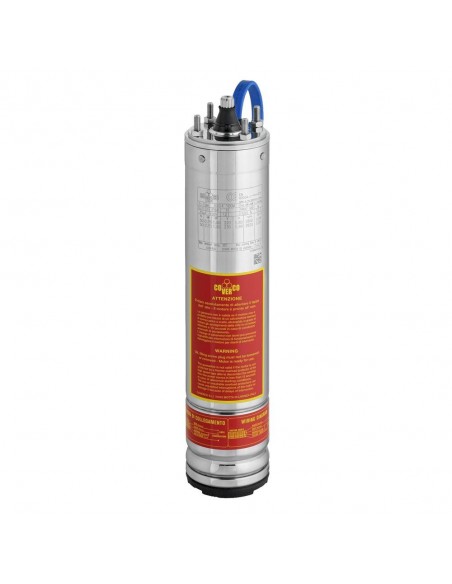

COVERCO 3CV 4" 230 single-phase submersible motors, made with top quality materials to guarantee long life and functionality, even under the toughest working conditions. Their uses can be very diverse: irrigation systems, drinking water supply, installation in wells for water supply plants in domestic or agricultural applications, in agitators in water treatment plants, in water supply systems in industries, in construction and mining drains, in pressure boosting systems, etc. In case of installation in open or large wells, a cooling hood must be installed to force the water to flow over the surface of the motor. In case of wells without constant water flow, the installation of a level detector is recommended in order to avoid dry running of the motor and pump.

Power LoadIN Condenser IsPerformance CosØ L Weight

Axial 450V-50Hz In % CV KW

CV KW NA μF1/1 3/41/2 1/1 3/4 1/2 mm mm mm Kg

3 2,2 400014,7 704,2 68 65 55 0,97 0,98 0,93 96 437 17,3
